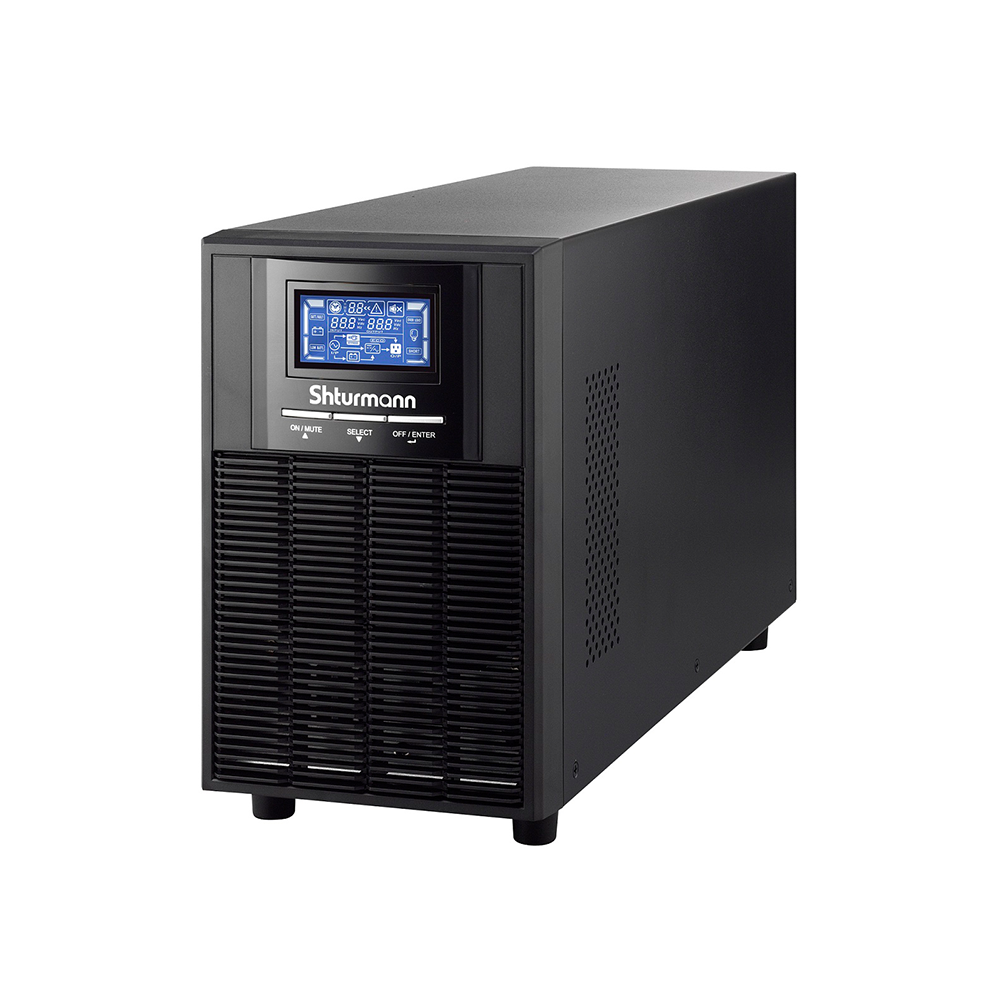

Winner Pro Plus 2k UPS

      Input:

  • Capacity: 2000 VA / 1800 W
  • Nominal voltage: 110/115/120/127 VAC or 208/220/230/240 VAC
  • Voltage range: 60-145 VAC or 120-300 VAC at 50% load / 90-145 VAC or 180-300 VAC at 100% load
  • Frequency range: 60-70 Hz
  • Power factor: ≥ 0.99 @ nominal voltage (100% load)
    Output:
  • Output voltage: 110/115/120/127 VAC
  • Voltage regulation : ± 1%
  • Frequency range: 47-53 Hz or 57-63 Hz
  • Frequency range(Batt. Mode): 50 Hz or 60 Hz ± 0.5
  • Current crest ratio: 3:1
  • Harmonic distortion (Linear load): ≤ 3% THD
  • Harmonic distortion (non-linear load): ≤ 6% THD
  • Transfer time: 0 ms
  • Waveform (Batt. Mode): Pure sinewave
    Efficiency:
  • AC mode: 89%
  • Battery mode: 87%
    Battery:
  • Battery type & number: 12 V/9 Ah
  • Numbers: 2/3
  • Typical recharge time: 4 hours recover to 90% capacity
  • Charging current: 1.0A/2.0A (adjustable)
    Indicators:
  • LCD Panel: UPS status, load level, battery level, input/output voltage, discharge timer, fault conditions
    Alarm:
  • Battery mode: Sounding every 4 seconds
  • Low battery Sounding every second
  • Overload: Sounding every 0.5 second
  • Fault: Continuously sounding
    Physical:
  • Dimension: D x W x H (mm)(UPS unit): 421 x 190 x 318(3U)
  • Dimension: D x W x H (mm)(battery pack): 580 x 438 x 133(3U)
  • Net weight (kgs)(UPS unit): 26.2
  • Net weight (kgs)(battery pack): 6.8
    Environment:
  • Humidity: 20-90 % RH @ 0-40°C (Non-condensing)
  • Noise level: less than 50 dB
    Management:
  • Smart RS-232 / USB: Supports Windows®️ 2000/2003/XP/Vista/2008/Windows®️7/8, Linux, MAC
  • Optional SNMP: Power management from SNMP manager and web browser
