Feature
- Supply power to wireless AP and IP Camera through CAT 5 cable
- 4x 10/100/1000m auto sensing RJ45 port. 1Port: 10/100/1000M auto sensing RJ45 port. 1 Port: 10/100/1000M auto sensing SFP
- Support port auto-flip (Auto MDI/ MDIX)
- Anti-thunder function for uplink port (Port 9-10 anti-thunder function reaches level 2)
- Total PoE Power: 72W (Port 1 – 4 )
- Max PoE power output is
- Support Vlan
- Switch Mode: Port 1-5: 10/100/1000M auto-sensing. @100 meters; Port 9-10: 1000M @ 100 meters
- Store and forward
- Fanless design, natural Mini size.
Target Industries
- HD monitor transmission and power supply
- Wireless AP layout transmission and power supply
- Network telephone transmission , intelligent house and home system
- Intelligent transportation supervisory system(ITS)
- High-speed Way supervisory/Tele-Communication System
- Security protection system, TV medical treatment
- Long-distance Muti-media Schooling, Campus monitoring
- Long-distance broadcast television transmission system
- High-building Security Protection, Military Tele-Com projects
| Product Name | 11-Port Standard PoE Switch |

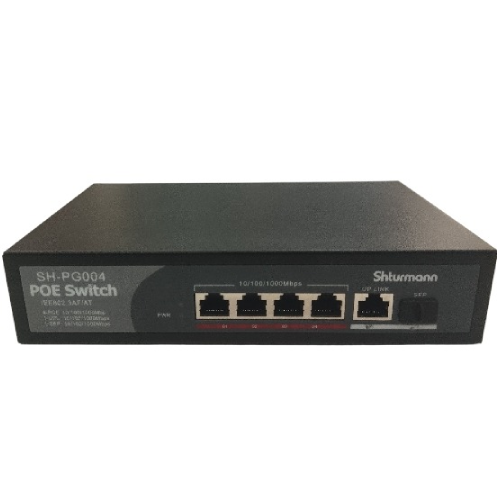

| Model | SH-PG004 |
| Connector Type | 4x 10/100/1000M copper RJ45 Ports + 1x 10/100/1000M copper RJ45 Ports + 1x1000M SFP Ports (All ports support MDI/MDIX auto sensing) Port 1-8: PoE port, max PoE output for each port is 30W. |
| Network Media | 100BASE-T: Cat5 UTP(≤100 meters); 1000BASE-TX: Cat5 or later UTP(≤100 meters); |
| Bandwidth | 10 Gbps |
| Address Database Size | 2K |
| Network Latency | maximum delay less than 20 microseconds |
| Forwarding Mode | Store-And-Forward |
| Network Protocols | IEEE 802.3i 10BASET IEEE 802.3u 100BASETX IEEE 802.3x Flow Control IEEE 802.3af/at |
| Power Supply | Input: AC100-240V, 50-60Hz |
| PoE Ports | 4*PoE Ports |
| PoE Port Power | Max 30W |
| PoE Standard | IEEE802.3af/at |
| Working Environment | Operating Temperature: -20 ° ~ 55 ° C; Storage Temperature: -20 ° ~ 75 ° C; Humidity: 10% ~ 90%, non-condensing; Storage Humidity: 10% ~ 95%, non-condensing; Working Altitude: 3000 m (10,000 ft); Storage Altitude: 3,000 m (10,000 ft) |
| Certification | CE Mark, commercial CE/LVD EN60950 |
| Radiation | CE mark, commercial FCC Part 15 Class B VCCI Class B EN 55022 （CISPR 22，Class B |
| Transmission Distance | Max 150 meters |
| Power Supply Type | 1,2(+)/3,6(-) (Default) ; 45(+),78(-) (Option) |
| Product Size | 200 mm*120 mm*44 mm, 1 kg |
| Warranty | 3 year |
