Type:

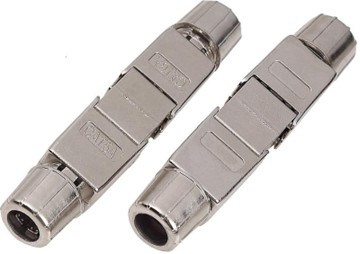

1. 6A Shielded Toolless Connector
2. Colour: Metal Color
3. ROHS, Reach Compliant

Cable Matched:

1. Solid and Stranded
2. 22AWG/23AWG/24AWG

Eletrical:

1. Contact Resistance: 20m OHM
2. Insulation Resistance: <= 500m OHM @100 V DC
3. Withstand Voltage: DC1000V AC700V RMS 60Hz, IMIN
4. CAT6A Permanent Link: Conform to ANSI/TIA/EIA 568B. 2-10

Environmantal:

1. Storage: -40°/    +70°
2. Operation: -10°/    +60°

Mechanical:

1. Shielded Material: Zinc Alloy
2. Plastic Material: New PC
3. Terminal Pins: Phosphor Bronze, Zin Plating
4. RJ45 Contact Life: 750 times min
5. IDC Terminal Life: 250 times min
